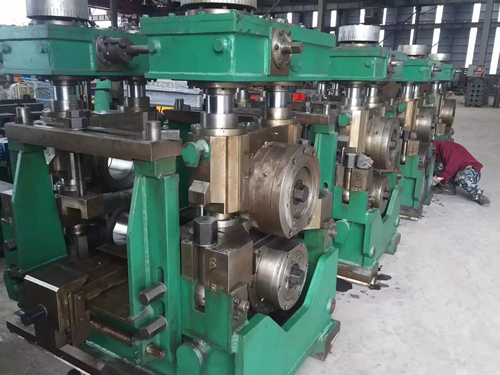

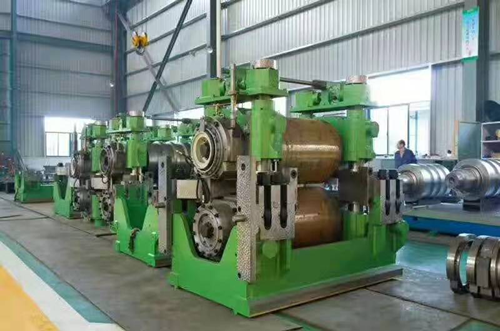

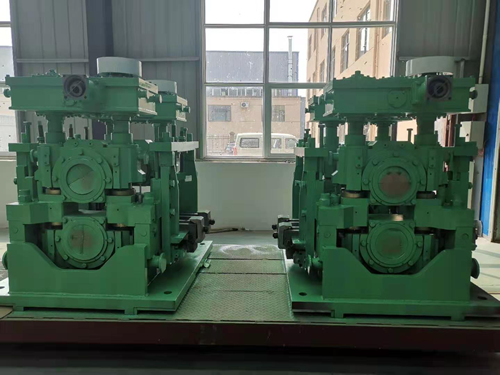

短應力紅圈軋機 Short stress red ring mill

       短應力線軋機具有剛度大、產品精度高、設備重量輕，操作簡單，尤其是“在線快速更換軋機”的特點，使得其成為目前國內棒、線材廠軋鋼作業中的主導機型。短應力線軋機大致可分為機架式和框架式兩種。如圖1所示。(其他只是在平衡方式、軸向調整機構、壓下機構、組裝方式上等稍有差別，基本結構相同。

       Short-stress line rolling mill has the characteristics of high rigidity, high precision, light weight, simple operation, especially "on-line rapid replacement mill", which makes it become the leading model in domestic bar and wire mill rolling operation. Short stress line mill can be roughly divided into frame type and frame type. See Figure 1. (Others are only slightly different in the balancing method, axial adjustment mechanism, pressing mechanism, assembly method, etc., the basic structure is the same.

       軋機受到的軋制力通過軋輥、軋輥軸承、箱體、銅螺母、拉桿等各受力部件的內應力行成一個閉合的環線，即應力線。軋機底座和壓下機構不受軋制力，應力線較普通軋機短，提高了軋機強度，減少了軋機的彈性變形，所以稱為“短應力線軋機” 。

       The rolling force of the rolling mill is formed into a closed loop line through the internal stress of the roller, roll bearing, box, copper nut, tie rod and other stress components, namely, the stress line. The base and the pressing mechanism of the rolling mill are free from rolling force, and the stress line is shorter than that of the ordinary rolling mill, which improves the strength of the rolling mill and reduces the elastic deformation of the rolling mill, so it is called "short stress line rolling mill".
